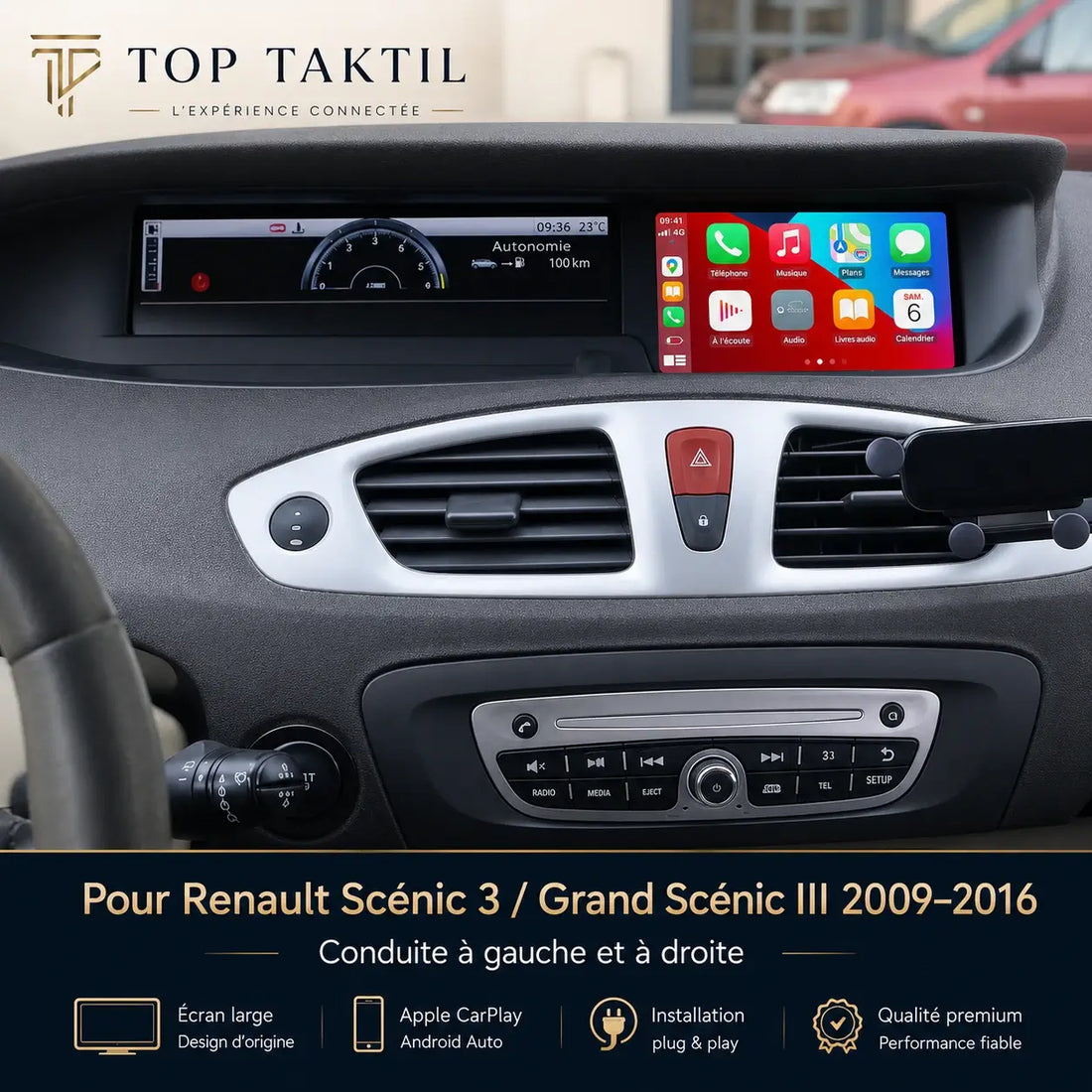

How to Install CarPlay on Renault Scénic 3
My Store AdminComplete Renault Scénic III 2009–2016 GuideInstalling Apple CarPlay on a Renault Scénic III can be simple with a standard radio, intermediate with Carminat TomTom, or much more technical with R-Link 1, Bose, Arkamys or Cabasse. Here is the complete method to identify the right system, choose the appropriate wiring harnesses, perform the installation and resolve the most common issues.

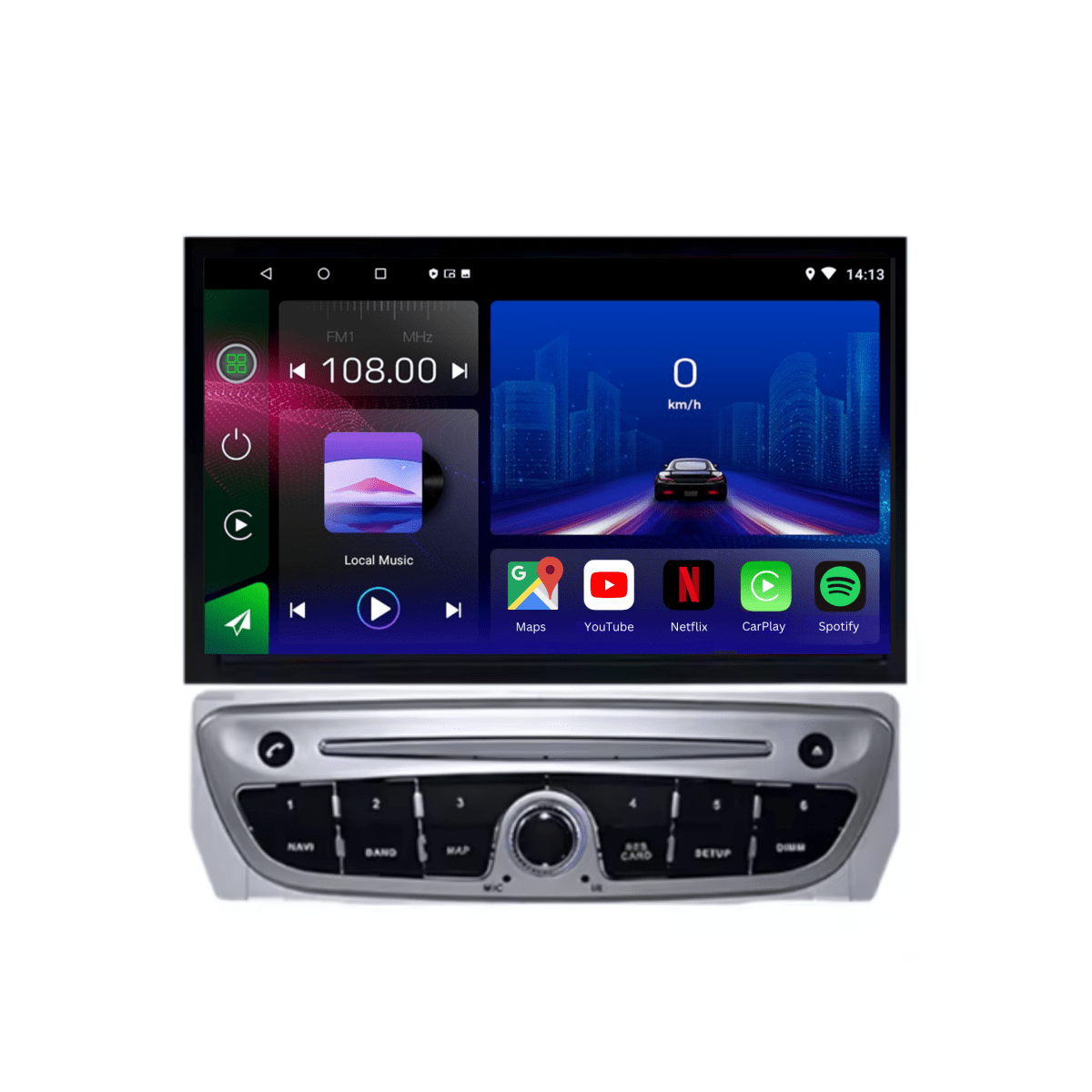

Android 15 Car Stereo for Renault Scénic 3
Modernize your Scénic III 2009–2016 with a 9-inch HD touchscreen integrating Apple CarPlay, Android Auto, GPS navigation and Android applications.
- Wired and wireless Apple CarPlay
- Wired and wireless Android Auto
- 9-inch HD screen, 1280 × 720
- GPS, Wi-Fi, Bluetooth and USB
- Steering wheel controls compatible
- HD 1080P reversing camera included
Before ordering: send a photo of the screen turned on and the dashboard to confirm the phase, fascia, Radio+/Continental, Carminat TomTom or R-Link 1, as well as Bose, Arkamys, Cabasse, the camera and the CANBUS harness.
What is the best solution to add CarPlay to the Scénic 3?
The easiest path is generally replacing a standard radio, Radio+ or Continental HU with an Apple CarPlay / Android Auto car stereo, with a CAN interface and an antenna adapter. The intermediate path concerns vehicles equipped with Carminat TomTom. The most delicate configuration is R-Link 1, as it is more integrated with the vehicle's functions.
For stable daily use, the most robust solution often remains an aftermarket CarPlay / Android Auto car stereo properly integrated, rather than attempting to force CarPlay onto the original Renault screen. On R-Link 1, community feedback is more extensive for Android Auto activation than for CarPlay. Third-party CarPlay modules exist, but their compatibility must be validated on a case-by-case basis.
Precisely identify the original system
The Renault Scénic III does not use a single audio architecture. The Phase 1 starts in 2009 and the Phase 2 in 2012. Carminat TomTom is documented from September 1, 2010, while R-Link appears from November 30, 2012. These dates serve as reference points but never replace visual and electrical identification of the vehicle.
1. Observe the fascia and radio type
A Radio+ / Continental HU unit with central audio module often uses a Quadlock Fakra connector. Connects2 references the CTSRN006.2 interface for many Scénic III 2009–2015 versions. Some variants instead use a Mini ISO connector, for which the CTSRN007.2 reference is documented on Scénic III 2009–2014.
2. Identify the upper screen
A TomTom navigation screen indicates a Carminat TomTom architecture. An R-Link menu indicates an R-Link 1 architecture, more integrated and more delicate to replace. Depending on the interface used, it is sometimes possible to retain the date, time, temperature or original navigation, but this should never be assumed without verifying the exact kit reference.
3. Check the dashboard type and host module position
Some specific kits distinguish between an "A model", equipped with an AMP wire for Bose integration, and a "B model", where the actual host module is located behind the glovebox, sometimes where a 6-CD changer sits. Some dashboards without a large screen are explicitly excluded by dedicated unit manufacturers. The correct visual appearance of the fascia therefore does not guarantee wiring compatibility.
4. Look for a premium audio system
Depending on the market and trim, the Scénic III can feature Arkamys, Bose, Cabasse or Carminat CNC. On Grand Scénic III Bose, the subwoofer may occupy floor space on the passenger side. On some Cabasse/CNC configurations, the tuner or radio amplifier may be located under the passenger seat. These variants modify access, wiring, impedance and the way the amplifier is awakened.
Quick compatibility table
| Original configuration | Common identifiers | Documented or recommended solution | Difficulty |
|---|---|---|---|
| Radio+ / Continental HU | Standard radio, Quadlock Fakra | Connects2 CTSRN006.2, Scénic III 2009–2015 | Low to medium |
| Mini ISO | Renault Mini ISO connector | Connects2 CTSRN007.2, Scénic III 2009–2014 | Medium |
| Standard Renault radio with steering wheel controls | Without navigation, often Quadlock | InCarTec 29-UC-050-REN2, 2009–2015, with ACC, illumination, speed and reverse outputs | Low to medium |
| Carminat TomTom | Upper TomTom screen | InCarTec 29-UC-REN3-NAV on some 2013–2016 versions with white connectors, or specific compatible car stereo | Medium to high |
| R-Link 1 | R-Link menu, generally after late 2012 | Complete replacement or well-documented third-party module; CarPlay on original screen remains less standardized than Android Auto | High |
| Arkamys / Bose / amplified system | Bose logo, DSP, subwoofer, amplifier or AMP wiring | Mandatory validation of AMP/remote wire, audio output, CAN and possible Arkamys DSP exclusions | High |
Parts, references and useful accessories
A clean installation consists of four assemblies: the main unit, the CAN/SWC interface, FM/DAB/GPS antenna adaptation, and then accessories related to the camera, microphone, amplifier and navigation. Prices below are prices observed at the time of research and may change.
| Family | Reference | Documented use | Observed price |
|---|---|---|---|
| Standard CAN/SWC interface | InCarTec 29-UC-050-REN2 | Retains steering wheel controls and provides ignition, illumination, speed pulse, handbrake and reverse; Scénic III 2009–2015 | £83.99 |
| CAN/SWC interface with navigation retention | InCarTec 29-UC-REN3-NAV | Retains steering wheel controls and original navigation on some Renault models with white connectors; Scénic III 2013–2016 | £208.99 |
| SWC Quadlock interface | Connects2 CTSRN006.2 | Steering wheel controls and, depending on variant, date, time and temperature; Scénic III 2009–2015 | Not indicated |
| SWC Mini ISO interface | Connects2 CTSRN007.2 | Steering wheel controls and, depending on variant, date, time and temperature; Scénic III 2009–2014 | Not indicated |
| Chinese radio patch lead / resistive learning | InCarTec 29-UCCAB-000 | Bare wires for Xtrons, Pumpkin, Joying and unbranded units | — |
| Chinese radio patch lead / 3.5mm jack | InCarTec 29-UCCAB-016 | 3.5mm jack for resistive learning units | — |
| Universal patch lead kit | InCarTec 29-UCCAB-SET | Compatible with several Alpine, Kenwood, Pioneer, Sony, JVC families and Chinese radios | — |
| Single DIN fascia | InCarTec 50-366 | Scénic / Grand Scénic 2009–2015 fascia | £16.00 inc. VAT |
| FM Fakra to DIN adapter | InCarTec 21-123 | Adapter with phantom power for the amplified Renault antenna | £13.99 |
| FM Fakra to DIN + bullet adapter | InCarTec 21-123K | Practical variant depending on ISO harness and interface | £14.50 |
| Windscreen DAB antenna | InCarTec 70-923 | Active SMB DAB antenna for interior mounting | £17.99 |
| Universal reversing camera | Pioneer ND-BC9 | Universal CVBS camera, stated 159° angle, 10m cable | Not indicated |
| Universal front/rear camera | Kenwood CMOS-230 | CMOS camera with NTSC RCA video output | Not indicated |
CarPlay / Android Auto car stereo comparison
| Model | Type | CarPlay / Android Auto | Strengths | Points of caution | Observed price |
|---|---|---|---|---|---|
| Alpine iLX-W690D | 2 DIN 7-inch | Yes | Shallow chassis approx. 6cm, DAB+ | Requires appropriate fascia and Renault interface | £399.00 |
| Sony XAV-AX5650 | 2 DIN 6.95-inch | Yes | HDMI, dual USB, borderless screen | Not Renault-specific | £399.99 |
| Kenwood DMX8021DABS | 2 DIN 7-inch | Wired and wireless | DAB+, Wi-Fi, DSP, four camera inputs, GPS/Glonass antenna | Higher budget; Renault kit always required | €494.00 to £634.99 depending on seller |
| Pioneer SPH-EVO950DAB | Floating 9-inch screen | Wired and wireless | Large screen, two camera inputs, practical when 2 DIN chassis is constrained | Check air vents and visibility | £599.00–£599.99 |
| Witson Scénic III 7-inch | Specific unit | Wireless | Harness, CAN box, microphone, GPS, 4G and RCA documented; no cutting required according to claim | Essential to identify dashboard A/B and excluded dashboards | €274.08 from a third-party seller |
| TechVoyage Scénic III | Specific unit | Yes | Complete kit announced with retention of original functions | Confirm real compatibility according to the vehicle | €340 / €440 / €640 depending on RAM and storage |
| FerraroStore Scénic III 4/64 | Specific unit | Wireless | CAN-Bus, DSP, 4G, steering wheel controls | External microphone not included unless option in observed offer | €609.90 |
| Bilmedie Scénic III 7-inch | Specific unit | Yes | Android 14, 4/64, 1280×720 screen, compatibility claimed 2009–2016 | Cross-check with the exact dashboard type | 3,499 DKK |
What budget should you plan for?
A recognized brand unit with fascia, Renault interface, patch lead and antennas generally costs more than an "all-in-one" specific car stereo, but it often offers better software updates, more controlled standby, and more predictable audio quality. A dedicated Scénic III unit can offer excellent visual integration and an attractive price, but its quality heavily depends on the manufacturer, CAN box and seller.
A user feedback on a 2011 Scénic III describes a cheap Android radio that drained the battery, before being replaced by a more expensive Sony. This case does not mean that all Android units are bad: it simply reminds that standby management and true ACC must be tested before considering the installation complete.
How to install CarPlay on Renault Scénic 3: step-by-step procedure
Document the configuration before disassembly
Photograph the fascia, upper screen, Bose or Arkamys logos, and the rear of the head unit if accessible. Note the year, phase, presence of navigation, connector type, and possible location of the remote audio module.
Prepare tools and secure the vehicle
Use plastic trim removal tools, appropriate screwdrivers, cable ties and a multimeter. Remove the card or key, turn off the ignition and disconnect the negative battery terminal before handling connectors.
Remove the fascia and original unit
Unclip without forcing and identify each connector. On Carminat, Cabasse, CNC or some dashboard B versions, the host module may be located behind the glovebox or under the passenger seat. Do not automatically consider the visible unit as the only audio element.
Pre-wire the assembly on a workbench
Assemble the car stereo, CAN/SWC interface, patch lead, FM adapter, optional DAB, GPS, microphone, USB extensions, RCA and AMP/remote wire. This preparation allows you to check the harness before tucking it into the console.
Connect the FM antenna and its phantom power
With an adapter such as the 21-123, connect the blue wire to the "antenna remote", "ANT" or blue/blue-white output of the new car stereo. Without this power supply, FM reception can become very weak despite a perfectly functional tuner.
Install GPS, microphone, USB and DAB
Place the GPS antenna under a non-metallic part of the dashboard or in a clear area. Install the external microphone near the driver, away from air vents. Route USB cables to the glovebox or console. For DAB, respect the bonding area and the ground of the windscreen antenna.
Connect the reversing camera
Plug the video into the correct camera input and use the "reverse" signal provided by the CAN interface when available. For an original camera, check voltage, video format and possible OEM to RCA adapter. Parking sensors and their display are only retained if the interface provides for it.
Perform the first test before reassembly
Reconnect the battery temporarily and check power on, power off, memory, sound, all four speakers, FM, DAB, GPS, Bluetooth, microphone, CarPlay, steering wheel controls, camera, parking sensors, and absence of service or airbag messages.
Configure steering wheel controls
For a branded radio, use the corresponding patch lead. InCarTec notably documents 29-UCCAB-001 for Alpine, 29-UCCAB-005 for Kenwood/JVC single wire, 29-UCCAB-007 for Pioneer/Sony, and 29-UCCAB-000 or 29-UCCAB-016 for resistive learning units.
Route the harness and reassemble
Once all tests are validated, route the CAN box and connectors without crushing them. Avoid hot areas, moving parts and metal edges. Secure the car stereo, re-clip the fascia, then check complete power-off one last time.
Pre-installation checklist
- Clear photo of fascia and screen
- Phase 1 or Phase 2 confirmed
- Standard, Carminat or R-Link identified
- Bose, Arkamys or Cabasse verified
- CAN/SWC interface validated
- Patch lead suited to the car stereo
- Fakra and phantom power planned
- DAB, GPS, microphone and camera verified
- Battery disconnected before work
Post-installation checklist
- Correct startup and shutdown
- No airbag or service message
- FM and DAB working correctly
- GPS fast and stable
- Bluetooth and microphone working
- Wired and/or wireless CarPlay
- Steering wheel controls functional
- Camera and reverse gear working
- No abnormal standby consumption
CAN-Bus, ACC and steering wheel controls
The heart of the installation is not just the screen: it's the CAN-Bus translation. A good interface not only retains the steering wheel buttons. It also generates the signals required by the aftermarket car stereo: ACC, illumination, reverse gear, speed pulse and sometimes handbrake.
| Signal | Function | Check point |
|---|---|---|
| Ignition / ACC 12V | Proper power on and off | The unit must actually turn off and retain its memory |
| Illumination | Day/night switching and backlighting | Check variation with headlight activation |
| Speed pulse | Assistance for navigation and some advanced functions | Only if the car stereo uses this input |
| Reverse gear | Automatic camera activation | Check immediate switching in reverse gear |
| Park brake | Regulatory management of some video functions | Respect safety rules and manufacturer wiring |
| AMP CON / remote | Bose amplifier or active antenna wake-up | Essential if sound or FM remains absent |
Simplified decision tree
Standard radio / Radio+
Chronological reference points
DIP switch, KEY1, KEY2 and SWC learning
On some interfaces, DIP switches 1 to 4 select the car stereo manufacturer or protocol, while 5 and 6 concern vehicle configuration. KEY1/KEY2 modes, Analog, Analog Single Wire and their variants must match the actual input of the car stereo. An installation can therefore be correctly powered while retaining mute steering wheel controls due to an incorrect patch lead or learning mode.
Common problems and solutions
| Symptom | Likely cause | Recommended fix |
|---|---|---|
| Very poor FM reception | Phantom power not connected | Connect the blue wire of the 21-123 to the remote antenna or blue/blue-white output |
| No sound on Bose | AMP CON wire absent, amplifier not awakened or audio interface incompatible | Check AMP remote, amplifier activation and Bose compatibility |
| Steering wheel controls not working | Incorrect patch lead, incorrect DIP or incorrect SWC mode | Validate the reference, CAN profile and KEY1/KEY2 or analog mode |
| CarPlay works but buttons don't respond | SWC output misconfigured | Reconfigure the patch lead or perform resistive learning |
| Airbag or service fault after testing | Screen or passenger warning circuit disconnected during power-on | Reconnect correctly, check integration and clear fault if necessary with appropriate tool |
| Radio/TomTom only displays the time | Hidden fuse or module power supply | Check module 1531 and its 20A fuse behind the glovebox |
| R-Link stays stuck on TomTom | Software issue, card, storage or version | Perform a reboot, check media and version before concluding hardware failure |
| Black camera or no switching | Incorrect video input, incompatible format or missing reverse signal | Check RCA, camera power, CVBS/AHD/NTSC and reverse signal |
| Battery drains after a few days | Standby too long, fake ACC or CAN box keeping the unit active | Measure standby current, verify actual power-off and reduce extended standby |
What international community feedback shows
French forums
On a Grand Scénic III Bose, the subwoofer may occupy floor space on the passenger side, which affects cable routing and access to modules. Another case on a 2011 Scénic III was resolved by discovering a 20A fuse behind the glovebox, in module 1531.
Polish forums
Users report that Android Auto is better documented than CarPlay on some Carminat or R-Link 1 screens. A third-party CarPlay solution may work in some cases when Android Auto is already active, but this is not a universal guarantee.
Dutch forums
A Scénic III 2011 owner preferred a Sony XAV with a floating screen after a bad experience with a cheap unit that drained the battery. The feedback highlights the trade-off between price, visual integration, stability and standby consumption.
Russian forums
Discussions remind of the existence of several radio variants and Bose systems with specific audio loads. An installation without the correct wiring diagram may require re-pinning or sourcing specific connectors, especially with Bose, Cabasse or navigation.
FAQ: CarPlay installation on Renault Scénic 3
Can CarPlay be installed on all Renault Scénic III 2009–2016?
Yes, but not with the same method. A standard radio is generally easy to replace. Carminat TomTom requires a specific interface or unit. R-Link 1 is more complex if you want to retain the original screen.
Do I need to cut the original wires?
Normally no. With a specific harness and an adapted CAN/SWC interface, the installation should remain reversible and close to plug-and-play.
Can steering wheel controls be retained?
Yes in most cases, provided you choose the correct interface and the patch lead corresponding to the brand or protocol of the car stereo.
Can I keep the Bose amplifier or Arkamys system?
Often yes, but precise validation is essential. You must check the AMP/remote wire, audio output level, impedance and possible exclusions of the interfaces.
Can Carminat TomTom be retained?
Some navigation retention interfaces are documented for specific versions with white connectors. On other configurations, a specific unit or complete replacement may be more realistic.
Can CarPlay be activated directly on R-Link 1?
There is no universal solution comparable to a guaranteed simple activation. Feedback is more extensive for Android Auto. For CarPlay, a compatible third-party module or complete replacement is generally required.
Why does FM become poor after installation?
The Renault antenna may be amplified. The Fakra to DIN adapter must then receive phantom power via its blue wire connected to the ANT or blue/blue-white output of the car stereo.
Why does the unit turn on but steering wheel controls don't work?
The most frequent cause is an unsuitable patch lead, incorrect CAN profile or incorrect KEY1/KEY2 mode, not a failure of the vehicle's steering wheel controls.
Will the original camera and parking sensors be retained?
Only if the interface explicitly provides for it. An OEM camera may require voltage and video conversion to RCA. The beeps and radar display may require an additional module.
How to avoid battery discharge?
Check that the unit receives a real ACC, that it turns off completely after locking, and that extended standby does not keep the system active. A standby current check is recommended after installation.
Where to install the external microphone?
Place it near the driver, usually at the top of the A-pillar or near the overhead console, away from air vents and surfaces likely to cause vibrations.
When should I call a professional technician?
Professional intervention is recommended for R-Link, complex Carminat, Bose, Arkamys, Cabasse, OEM camera, airbag fault, modified harness or doubt about the presence of a remote amplifier.
Conclusion: exact compatibility matters more than the screen brand
Before choosing a car stereo, confirm the upper screen type, radio connector, presence of Bose, Arkamys or Cabasse, location of the audio unit and exact year. Then the strategy becomes clear:
- Standard radio: CarPlay/Android Auto car stereo, CAN/SWC interface, 21-123 adapter and optional DAB.
- Carminat TomTom: documented navigation retention interface or specific unit compatible with the correct dashboard.
- R-Link 1: precisely validated third-party module or complete replacement, rather than a supposed universal CarPlay activation.
- Bose, Arkamys or Cabasse: mandatory validation of amplification, AMP remote, audio level and OEM functions.
