How to Install CarPlay Retrofit in an Audi A4 B8, B8.5 & B9 (Complete Guide)

Introduction and retrofit objective

Installing an Apple CarPlay and Android Auto module in an Audi A4 allows you to modernize the multimedia system without necessarily replacing the original screen, radio or MMI controls. The retrofit module is generally inserted between the Audi head unit and the screen: it receives power and vehicle controls, intercepts the LVDS video signal, then outputs either the Audi interface or the CarPlay interface. This architecture makes it possible, with a genuinely compatible kit, to retain the radio, Audi navigation, vehicle settings, parking sensors, original camera, steering wheel controls and factory audio system.

The first difficulty is therefore not the dismantling, but the exact identification of the vehicle. An Audi A4 B8 equipped with a Concert radio does not wire the same way as a B8 with MMI 3G Plus, and an A4 B9 with MIB2 Standard must not receive the same module as a B9 facelift equipped with MIB3. Manufacturer guides distinguish several specific references for Concert/Symphony, MMI 2G, MMI 3G, MIB2 and MIB3.

Apple lists the Audi A4 among CarPlay-compatible vehicles from model year 2017, but this indication means that CarPlay was available on certain configurations, not that all A4 B9s are automatically equipped with it. The Audi Smartphone Interface option, the type of MIB unit and the installed USB port determine actual compatibility. Older A4 B8 and B8.5 generally require an aftermarket system or a much more extensive multimedia conversion.

The information below combines installation documentation from specialized manufacturers with user feedback published on AudiWorld, Audizine, Drive2 and Audisport-Iberica. These testimonials show that the retrofit works very well when correctly chosen, but they also reveal that the majority of problems come from incorrect MMI identification, poor audio routing, incorrect DIP configuration or a poorly connected CAN/LVDS harness.

Identify the multimedia system before purchase

The model year and body style are never enough to order a module. You must photograph the screen, the control console, the radio faceplate, the rear connectors and the Version Information page of the MMI. Manufacturers themselves recommend confirming the system type with these elements before purchase.

On B8s, the presence or absence of the MMI dial near the gear lever is a very useful first clue. You should then confirm with the software version. The prefixes BNAV, HNAV and HN+ help avoid ordering a module with the wrong video protocol or harness.

On B9s, it is not advisable to rely solely on the number of USB ports or SD card readers. Two USB ports can be present without CarPlay being activated, while a port marked Charge only clearly indicates it is not a CarPlay data port. The most reliable verification is the Audi Smartphone Interface menu, the software version of the 5F unit and, for an OEM solution, compatibility confirmation by VIN.

Choosing between the different solutions

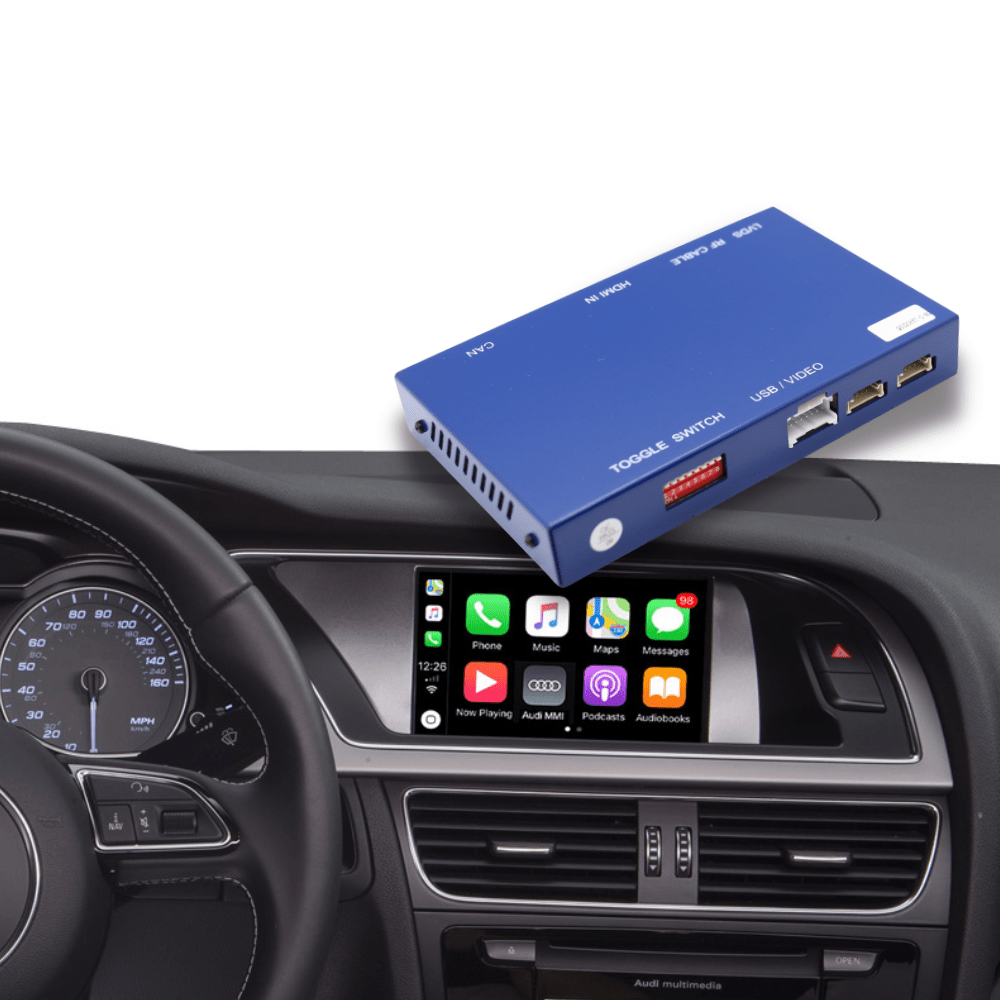

The CarPlay retrofit box is generally the best compromise. It retains the Audi screen and controls, remains reversible and requires relatively few modifications. However, it must be ordered for the exact system: Concert, MMI 2G, MMI 3G, MIB2 or MIB3.

The Android or Linux replacement screen adds a larger touchscreen and more applications. Its installation is more visible and may require replacing the screen mount, hazard button or certain trim pieces. RSNAV documentation shows that 8.8, 10.25 or 12.3-inch screens use different mounts and may require physical adaptation of the dashboard fascia.

The OEM retrofit on A4 B9 can offer the closest integration to factory, but it is not always possible with the original unit. AudiWorld technical discussions indicate that the Audi kit referenced 8W0051472 was intended for certain MIB2 Scale or High units, not all MST2 units. It may also be necessary to replace the charging USB port with a data port, then legally activate the Audi Smartphone Interface. This possibility must be verified by VIN with Audi or a VAG specialist.

Replacing the complete MMI unit with a used unit is a much heavier operation. It may involve component protection, FEC/SWaP licenses, coding, regional compatibility, audio system, screen, gateway and sometimes Virtual Cockpit. Owner experiences show that this type of conversion can work, but it is not a simple plug-and-play exchange.

Prepare the kit, tools and vehicle

A complete retrofit kit should normally include the CarPlay box, the T-harness power harness, input and output LVDS cables, a Wi-Fi antenna, a USB cable, a microphone if the device does not use the Audi one, as well as the possible RCA inputs for cameras. Some kits add an AUX cable, an AMI adapter or a specific harness for the climate control or CAN gateway.

The tools generally required are plastic trim removal tools, a Torx T20 screwdriver, an 8 mm socket, Audi/VW removal keys for certain MMI 3G units, a light, cable ties and automotive fabric tape. The RSNAV B8 manual specifically mentions the trim removal tool, T20 screwdriver, 8 mm socket, radio removal keys and cable ties.

Before dismantling, record important stations and settings, open the boot if the battery is located there, lower the windows and correctly position the gear lever. On an automatic transmission, it may be necessary to move the selector backwards to clear the fascia, but the ignition must then be turned off before disconnecting components.

Turn off the ignition, move the key away or disable keyless access, then disconnect the negative battery terminal according to the procedure adapted to the vehicle. Never turn on the ignition when the hazard button, passenger airbag warning light, MMI unit or CAN gateway is disconnected. Powering on in this state can record airbag, parking brake, ABS or communication faults.

The A-pillar contains a curtain airbag. The microphone or Wi-Fi antenna cable must never pass in front of the airbag or interfere with its deployment. The RSNAV installation manual explicitly warns about the presence of this airbag behind the trim. An untrained person should prefer routing under the door seal or seek professional assistance rather than completely dismantling the pillar.

Before starting, set the DIP micro-switches on the module according to the table provided by its manufacturer: MMI type, screen size, resolution, original or aftermarket camera and sometimes left or right-hand drive. An incorrect setting can produce a black screen, offset image, lines, incorrect resolution or inactive MMI controls.

Installation on Audi A4 B8 and B8.5

The procedure below applies to the general principle of CarPlay interfaces. The exact position of connectors depends on the Concert/Symphony, MMI 2G or MMI 3G system. The wiring diagram provided with your module remains the priority.

Remove the Audi screen and head unit

1. Protect the trim with masking tape and exclusively use plastic trim tools on visible areas.

2. On early B8s, unclip the screen surround from the corners. On later versions, lower and retract the steering wheel, then gradually unclip the large trim surrounding the screen and air vents.

3. Carefully disconnect the hazard warning and passenger airbag indicator connector. Do not turn on the ignition again until this connector is refitted.

4. Remove the OEM screen screws, take out the screen and unlock its LVDS video connector without pulling on the cable. This cable carries the image from the Audi unit to the screen.

5. On Concert or Symphony, remove the climate control unit then remove the radio screws. Work slowly: the side supports of the climate control can break if the panel is forced.

6. On MMI 3G, insert the removal keys into the unit slots until they lock, then pull out the unit and release its connectors. On some installations, the glovebox must also be removed to access the gateway or AMI.

Install the video harness and power

The video principle is always similar:

Original Audi unit
        │
        │ LVDS cable
        ▼
CarPlay module LVDS input
        │
        │ new LVDS cable
        ▼
Original Audi screen

Never force an LVDS connector. Check its keying and locking. On some multi-pin connectors, reverse insertion can cause a scrambled image or no image at all.

The module's electrical harness is normally installed as a bypass between the original connector and the Audi unit. Unlock the Quadlock with its lever, plug the kit's male Quadlock into the unit, then connect the original Audi connector to the kit's female Quadlock. The lever must reach the end stop; a connector only partially engaged can leave the screen working while cutting off sound, CAN or certain speakers.

On some Concert/Symphony installations, the module picks up CAN and power via a T-harness behind the climate control. On some MMI 3G installations, a bypass must be installed at the CAN gateway behind the glovebox. The RSNAV manual emphasizes that the vehicle must remain completely powered off during this operation, and that a bent or pushed-back pin in the gateway connector can generate numerous faults, or even prevent starting.

The module can be fixed behind the radio, under the MMI unit or behind the glovebox depending on available space. It must be secured with fabric tape or cable ties, without crushing cables and without blocking ventilation ducts. Drive2 owners recommend wrapping and attaching all harnesses to prevent vibrations and rattling noises in the dashboard.

Connect the audio

On many B8s, the CarPlay module sends its audio to the AUX input of the Audi system. The video may work perfectly while no sound is heard if AUX is not available or selected.

With an MMI equipped with Audi Music Interface, it may be necessary to use a genuine AMI to AUX adapter. An AMI USB, Lightning, iPod or Bluetooth adapter is not automatically equivalent to an analog AUX adapter.

If the AUX input does not appear in MEDIA > Sources, it can sometimes be activated by coding or in the service menu, depending on the system. Audizine users have resolved a complete lack of sound after installation by activating AUX and then restarting the MMI. This modification must be performed with a procedure adapted to the exact version of the unit.

Some recent modules offer Bluetooth audio output to the Audi system and avoid the physical AUX. This function should not be assumed: it depends on the module, the MMI and how calls are handled. Check it before permanently hiding the AUX harness.

Install the microphone, USB and Wi-Fi antenna

Place the external microphone near the overhead console or on the pillar, oriented towards the driver. Avoid air vents and areas directly exposed to window noise. Some modules can use the OEM microphone, but others require their own microphone for Siri and CarPlay calls. The RSNAV manual indicates that the external microphone is mandatory on some variants.

Route the USB cable to the glovebox, cubby or centre console. Even with wireless CarPlay, this port remains useful for the first test, updates, charging and diagnostics. The port must remain accessible after reassembly.

Secure the module's Wi-Fi antenna in a clear area, on the cabin side, and not behind a metal mass. Keep it as far as possible from large CAN harnesses and the radio unit. Installation documentation indicates that poor routing can degrade Wi-Fi and create audio anomalies.

Perform the first test

Temporarily reconnect the hazard warning, airbag indicator, screen, Audi unit and all essential connectors. Then reconnect the battery, turn on the ignition and first check the normal operation of the Audi MMI.

Press and hold the button specified by the manufacturer — often NAV, MENU, BACK or another button for a few seconds — to switch to the CarPlay interface. The exact button varies depending on the module. An installation documented on B8 uses, for example, a long press on the navigation control.

Test the Audi image, CarPlay, sound, MMI controls, steering wheel buttons, microphone, reverse gear, camera and parking sensors before tightening the screws.

Installation on Audi A4 B9 and B9 facelift

On the A4 B9, the J794 multimedia unit is generally accessible from the glovebox. Aftermarket kits for B9 most commonly use a Quadlock harness and a four-pin LVDS connection, but B9 facelift MIB3 units require a different interface.

Installing an aftermarket module

1. Turn off the ignition and disconnect the battery following the previous precautions.

2. Open the glovebox and remove the dashboard side cover. Remove the upper, side and lower screws securing the glovebox. Several tutorials document the use of an 8 mm socket for this operation.

3. Support the glovebox during its descent and disconnect only the necessary connectors. Do not pull on the lighting, switch or other harnesses.

4. Remove the MIB unit from its housing and photograph its connections before any modification.

5. Disconnect the original Quadlock and install the module's T-harness. Fully lock both ends.

6. Disconnect the LVDS cable connecting the unit to the screen. Connect it to the corresponding output of the module, then connect the new LVDS between the module and the MIB unit, according to the direction indicated by the manufacturer.

7. Connect the Wi-Fi antenna, USB, possible microphone and audio cable. Some B9 kits work via AUX, others via OEM Bluetooth Audio; this option depends on the product and the Audi configuration.

8. Set the DIP switches for the screen size — for example 5.8, 7 or 8.3 inches on some pre-facelift B9s — and for the presence of an OEM camera.

9. Install the unit behind or above the glovebox, without blocking ventilation. Leave the Wi-Fi antenna clear.

10. Test all functions before screwing the glovebox back in.

The OEM Audi Smartphone Interface retrofit case

An A4 B9 may already have compatible hardware but not have the Audi Smartphone Interface activated. In this case, the best solution may be to replace the charging USB port with a compatible data USB port, then officially activate the function. Specialists have documented the replacement of the Charge only port and the activation of CarPlay/Android Auto on compatible B9s.

The USB hub reference 8W0 035 736 is regularly associated with MIB2 installations of the A4 B9. However, the presence of the correct USB port is not enough: the 5F unit must also support the Audi Smartphone Interface and have the authorized activations.

MST2 MIB2 Standard units are more problematic. AudiWorld technical exchanges indicate that the Audi retrofit intended for certain MHS2/MHI2 units is not necessarily compatible with MST2. For these vehicles, a specific aftermarket box is often simpler and less expensive than replacing the entire MIB unit.

On a B9 facelift MIB3, certain functions may be managed by Audi services or on-demand functions depending on the market, VIN and equipment codes. Simple coding cannot create absent hardware compatibility. An AudiWorld owner who attempted activation on an incompatible unit obtained a partial appearance of CarPlay without a functional connection, illustrating the need to verify the hardware before any software intervention.

Flashing an MIB unit with a firmware found at random or bypassing FEC/SWaP licenses is not recommended. An incorrect version can cause a startup loop, loss of functions, regional incompatibility or disappearance of activation keys. Legal restoration of activations may require intervention by Audi.

Retaining original controls and equipment

MMI controls and steering wheel controls

A good module uses CAN data to translate the MMI dial, console buttons and certain steering wheel controls to CarPlay. Rotation generally moves the selection, pressing validates, and the back or menu buttons return to the previous screen.

The exact functions vary depending on the module. Volume buttons usually continue to control the Audi amplifier, while a long press on the voice button may call Siri. If controls do not respond, first check the vehicle profile in the module's menu, the DIP switches and the CAN harness before looking for a steering wheel problem.

Original reversing camera

When the camera is already integrated into the Audi MMI, the best configuration is generally to select OEM camera in the module. When reverse gear is engaged, the module must display the original Audi image and, depending on the system, the dynamic lines and parking sensor display. Correctly adapted B9 interfaces are announced as compatible with original cameras and sensors.

The video output of an Audi camera must not be connected directly to a universal RCA input without an adapted interface. An OEM camera may use a different power supply, resolution or video transport from an analog aftermarket camera.

Aftermarket camera

To add a non-original camera, connect its RCA video to the Rear Camera, CAM IN or CVBS IN input of the module. Power the camera according to the manufacturer's diagram and connect the reverse signal only if the module does not already receive this information via CAN.

In the settings, select the aftermarket camera type. In case of a black screen, check the camera voltage, ground, RCA continuity, reverse signal and video format. Some devices also allow adding a front camera with a delay after exiting reverse gear.

Parking sensors

The parking sensor beeps are normally produced or controlled by the Audi system, not by CarPlay. They should therefore remain present if the original MMI and amplifier are not removed. The graphical display however depends on the module: some automatically switch back to the OEM screen, while others overlay PDC information on the camera.

If the beeps remain active but the graphic disappears, the problem is probably a camera or screen switching setting. If the graphic appears but there is no sound, check the Audi audio source, PDC volume and the operation of the original amplifier.

Audi Sound System and Bang & Olufsen systems

A CarPlay module that injects audio into the MMI's AUX input does not replace the Audi amplifier. The Bang & Olufsen or Audi Sound System therefore normally continues to work as before. The final quality mainly depends on the module's output level, the AUX gain and the quality of the audio conversion.

To avoid saturation, start with the module volume at about 70–80%, the equalizer flat and the Audi AUX volume at a medium level. Then increase gradually. Too low a volume on the module forces the Audi amplifier to amplify background noise more; too high a volume can saturate the AUX input.

Microphone and calls

Three architectures are possible:

On some B8 installations reported by users, the phone must be connected to the module for CarPlay and to Audi Bluetooth for calls. This double connection works, but it can complicate source selection and increase phone battery consumption.

Virtual Cockpit and instrument cluster

An aftermarket CarPlay box displays CarPlay on the central screen, but it does not generally transform CarPlay into native Audi navigation in the Virtual Cockpit. The instrument cluster may continue to display Audi information, media or original navigation, but not necessarily Apple Plans, Google Maps or Waze.

This limitation distinguishes the aftermarket box from a complete OEM MIB retrofit. It must be clearly explained to the customer before purchase.

CarPlay configuration and final installation tests

For a first wired connection, use the module's data USB port and a good quality cable. Apple recommends using the port identified for CarPlay, making sure the iPhone is up to date, and trying another cable or port in case of failure.

For wireless CarPlay, enable Bluetooth and Wi-Fi on the iPhone, start pairing from the module, then accept the Bluetooth and CarPlay prompts. Apple indicates that a compatible vehicle or device uses Bluetooth for initialization, then Wi-Fi for the CarPlay connection.

After pairing, test methodically:

1. The Audi interface starts without error messages.
2. Switching from the Audi interface to CarPlay and back.
3. Sound on all four doors, centre speaker and subwoofer if present.
4. Volume, MMI dial, back, menu buttons and steering wheel controls.
5. Siri and microphone quality.
6. Apple Plans, Google Maps or Waze with voice guidance.
7. Radio and Audi media after returning to the original interface.
8. Camera and parking sensors in reverse gear.
9. Automatic return to CarPlay after leaving reverse gear.
10. Module sleep mode after locking the vehicle.

Leave the vehicle locked for several minutes, then check that the module has turned off. A light that remains briefly active may be normal during the control units' sleep cycle, but a module that remains permanently powered can drain the battery. The RSNAV documentation indicates that some lights may flash for several minutes after shutdown before turning off.

Once all tests are validated, turn off the ignition again, route the cables without forming tight loops and secure each connector. Do not place the unit against a heating duct, a moving part of the glovebox or a metal edge.

Troubleshooting common issues

The Russian feedback on an A4 B8 equipped with a CarPlay module highlights a typical constraint of AUX systems: navigation voice guidance is only heard when the AUX source is selected. The customer must therefore be informed that a module using AUX cannot always overlay CarPlay instructions on the original FM radio or CD.

Conversely, modules using OEM Bluetooth Audio can improve daily use, but they must be validated on the exact Audi configuration. Commercial descriptions sometimes indicate Bluetooth Audio compatibility only on certain models.

Final recommendations for a reliable installation

The best method is to ask the customer, before any order, for the following elements: model year, B8/B8.5/B9/B9.5 generation, photo of the screen, photo of the MMI console, photo of the USB or AMI ports, presence of navigation, camera, parking sensors, Audi Sound System or Bang & Olufsen, as well as a photo of the software version. This verification is more reliable than a simple year-based search.

For an A4 B8 or B8.5, the retrofit box specific to the original system is generally the most rational solution. It avoids the extremely complex conversion from Concert to MMI 3G and limits component protection issues. Complete conversion experiences show that they can require an MMI unit, a screen, a control panel, a gateway, optical wiring, a tuner and several coding operations.

For an A4 B9, you should first check whether the Audi Smartphone Interface can be legally activated with the existing hardware. If the unit is compatible and only the data USB port and activation are missing, the OEM solution will often be the most elegant. If the car has a non-compatible MST2 unit or if OEM activation is not available in the country, a specific MIB2 aftermarket box is generally more realistic.

For a B9 facelift MIB3, never order a module based solely on "Audi A4 2016+". The seller must explicitly confirm MIB3 compatibility, screen size, LVDS connector and retention of the camera and parking sensors. Pre-facelift B9 MIB2 modules are announced separately from MIB3 solutions.

Finally, no part should be definitively reassembled before validating the OEM image, CarPlay, sound, microphone, controls, camera, parking sensors and sleep mode. True "plug-and-play" does not mean simply plugging connectors in randomly: it means that the correct module, properly configured, can be added without cutting the Audi harness.

A successful installation must remain reversible, silent, without dashboard warning lights, without abnormal battery consumption and without loss of original functions. It is this quality of integration — more than the mere presence of CarPlay — that distinguishes a professional installation from an incomplete setup.
