Installing an Android head unit compatible with CarPlay and Android Auto in the Alfa Romeo 159, Brera or Spider (2005–2012) is generally described as Plug & Play, but several technical precautions are required because of the specific electrical and dashboard configurations used in these vehicles.

This guide summarises advice and user feedback gathered from international forums in Italy, Germany, Russia, France and other markets to help you complete the installation successfully.

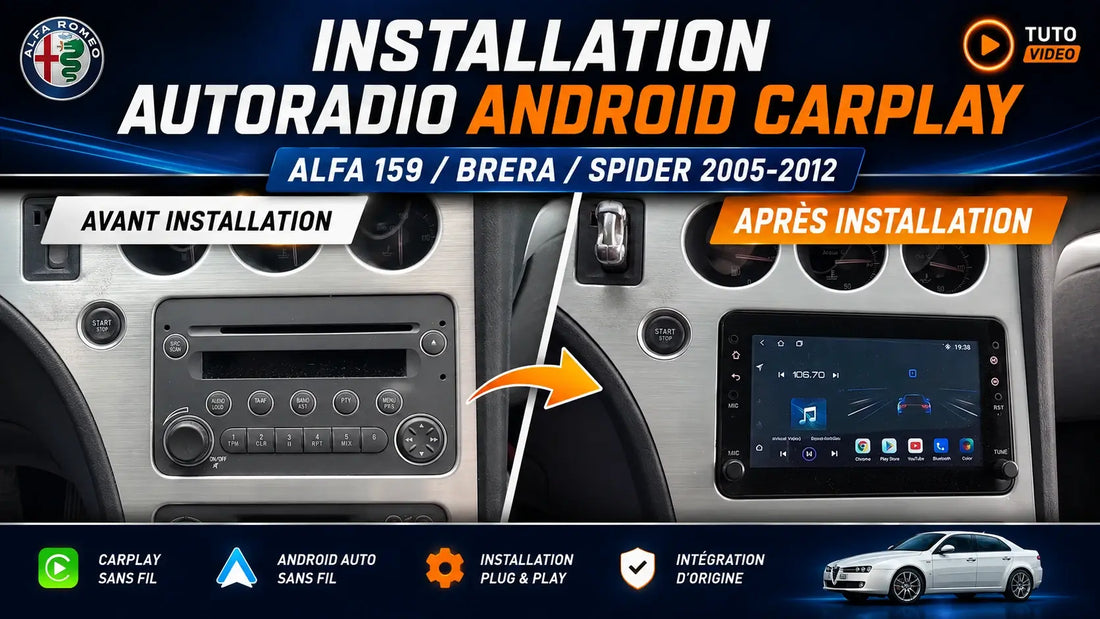

Once installed, the Android touchscreen replaces the original radio and provides a modern interface with CarPlay and Android Auto.

1. Before Buying: Standard Factory Radio vs Large GPS System (ConnectNav)

The most important step is identifying the current dashboard configuration. Alfa Romeo 159, Brera and Spider models from 2005–2012 were available with two main systems:

• Standard radio without factory GPS: original 1-DIN or approximately 1.5-DIN factory radio.
• Large factory GPS system (ConnectNav): factory navigation screen, often referred to as the Magneti Marelli GPS system.

If your vehicle has the original ConnectNav system, the front panel is larger and the chassis is deeper. A specific fascia adaptor, often referred to as a “Macman Pro” style kit, is required to install the new 2-DIN unit. The original chassis cannot simply be reused.

Vehicles without factory GPS generally use the standard Plug & Play installation kit.

Distributors therefore recommend checking the dashboard image before ordering to confirm whether the vehicle has the GPS or non-GPS configuration.

In short: if your car has the large original navigation display, you will need a special 2-DIN fascia such as a Macman-style or custom 3D-printed adaptor. If it does not have factory GPS, the standard kit designed for the Alfa 159, Brera and Spider without GPS can normally be used.

2. Electrical Characteristics of the Alfa 159

The Alfa 159 does not use a standard ISO radio connector. Instead, it uses a 40-pin Quadlock connector with a Magneti Marelli OEM electrical architecture.

This means several specific components may be required.

• Quadlock-to-ISO adaptor: if your vehicle has the original ConnectNav system, you may need to install a Quadlock-to-ISO adaptor between the vehicle wiring and the new Android head unit harness.

  On vehicles without factory GPS, the wiring loom included in a vehicle-specific Plug & Play kit normally already incorporates this adaptation.

• CANBUS decoder: recommended Alfa 159 kits normally include a small CANBUS decoder box. This module allows the new head unit to communicate with the vehicle's electronic network.

  Depending on the system, the CANBUS module can retain or provide:

  • Steering wheel controls for volume, track selection and phone functions.
  • ACC / ignition signal for switching the radio on and off with the ignition.
  • Dashboard illumination.
  • Reverse signal for automatically displaying the reversing camera.
  • Vehicle audio information shown on compatible original displays.
  • Original reversing camera and amplifier functions, where supported by the correct interface.

A CANBUS adaptor such as an ACV interface may provide ignition, illumination, reverse signal, speed pulse and steering wheel control information through the 40-pin Quadlock connector.

Without the appropriate CANBUS interface, important functions such as ignition control, steering wheel buttons or audio integration may not operate correctly.

On Alfa Romeo systems, the switched 12 V ignition signal is often generated through the CANBUS interface rather than directly from a traditional ignition wire.

Forum tips:

• Generic Android head units supplied with an Alfa-specific CANBUS interface normally work without major difficulty. Traditional aftermarket brands such as Pioneer or Sony may require a separate CANBUS interface from brands such as ACV or Dynavin.
• Check whether your car has the original Bose system. If the vehicle uses the factory Bose amplifier, select the appropriate Bose-compatible wiring or CANBUS option when ordering because the audio wiring may be different.

3. Typical Kit Contents

A typical Alfa-specific Plug & Play installation kit generally includes:

• Android head unit with a 7-inch or 10-inch display and, depending on model, a 2.5D QLED or IPS screen.
• Vehicle-specific 2-DIN fascia according to whether the car originally had the smaller radio or the larger navigation unit.
• Wiring harness with an Alfa-compatible CANBUS module.
• GPS antenna and USB cables for CarPlay and Android Auto.
• Microphone. Many systems include an internal microphone, while an external microphone may be supplied or connected separately depending on the model.
• Radio antenna adaptor, sometimes using an angled connector where space behind the dashboard is limited.
• Plastic trim removal tools.

Manufacturers often describe these kits as Plug & Play because the supplied connectors are designed to match the vehicle wiring.

For example, some manufacturers describe their systems as: “Plug and play car radio, comes with CANBUS, supports steering wheel control, special cables and easy installation.”

In addition to an integrated microphone, an external Bluetooth or wired microphone may sometimes be available as an optional accessory.

Practical details:

• The replacement radio antenna connector may point upwards and space behind the centre console can be limited. An angled antenna adaptor can make it easier to connect the FM antenna.
• DAB+ / antenna: some original Alfa antennas require a 12 V phantom power supply for their internal amplifier. Many aftermarket head units do not provide this directly, so an appropriate powered adaptor or an active DAB+ antenna may be required.

4. Step-by-Step Installation

Estimated total time: approximately 1–3 hours. The installation generally does not require soldering because the vehicle-specific connectors plug directly into the supplied harness.

• Step 1 – Remove the original head unit: first disconnect the negative battery terminal to reduce the risk of an electrical short circuit.

  Remove the trim surrounding the radio using plastic trim tools. Unscrew the factory radio mounting screws, pull the unit forwards and disconnect all connectors at the rear, including the main wiring harness, antenna connection and any original camera connection if present.

• Step 2 – Connect the new installation kit:

  • If the vehicle originally had ConnectNav GPS, first install the appropriate 2-DIN fascia adaptor. Depending on the fascia design, this may need to be positioned from behind the centre console once the ventilation and climate-control trim has been removed.
  • Rear connections: connect the supplied wiring harness to the CANBUS decoder and then to the Android head unit.
    • Connect the ISO power and speaker connection according to the supplied harness.
    • Connect the FM/DAB antenna. If space is limited, use an angled adaptor.
    • Connect the GPS antenna, USB cable or cables and external microphone where applicable.
    • The CANBUS decoder sits between the vehicle wiring and the head unit harness according to the supplied kit configuration.

• Step 3 – Configuration-specific adjustments:

  • Original ConnectNav system: on some configurations, user reports indicate that the permanent 12 V supply and ignition-switched supply may need to be reversed so that the new head unit switches on and off correctly with the ignition. The wiring diagram supplied with the specific harness should always be checked before making this adjustment.
  • Original antenna: check whether the original FM antenna requires a phantom 12 V supply for its amplifier. If the replacement head unit does not provide this, an appropriate powered adaptor or active antenna may be required.

• Step 4 – Testing before final installation: reconnect the battery and switch on the head unit before refitting all dashboard trim.

  Check the following:

  • The display powers on correctly and day/night brightness works as expected.
  • Audio plays correctly through the vehicle speakers without interference.
  • The reversing camera, if connected, appears automatically when reverse gear is selected.
  • The steering wheel controls operate volume, track and phone functions correctly.
  • CarPlay or Android Auto connects correctly. For wireless systems, Bluetooth and Wi-Fi normally need to be enabled on the phone during initial pairing.
  • GPS, Bluetooth and other multimedia functions operate correctly.

  Once all functions have been tested, carefully organise the wiring behind the dashboard, secure the head unit and reinstall the trim panels without damaging the clips.

  The goal is for the new multimedia system to integrate neatly into the dashboard with an OEM-style appearance.

5. Tips and Common Installation Issues

• Centre console removal: several owners report that installation on the Alfa 159 can require more dismantling than expected. Depending on the vehicle configuration, parts of the centre console, ventilation trim and climate-control area may need to be removed to access the radio properly. If you are not confident carrying out the installation, professional fitting is recommended.
• Sound quality: many users report improved audio quality compared with the original factory unit. For further adjustment, use the integrated DSP equaliser or connect an external amplifier or subwoofer where supported.
• Memory and processor: for smoother performance, models with at least 4 GB RAM and 64 GB storage are generally recommended. A 6 GB / 128 GB configuration provides more headroom for navigation, multimedia applications and multitasking.
• Wireless connectivity: many modern Android head units support wireless CarPlay and Android Auto. Enable Wi-Fi and Bluetooth on your smartphone during the initial pairing process.
• DAB+ antenna: reception quality can depend heavily on the antenna system. An active roof-mounted DAB+ antenna from brands such as Bad Blankenburg or Calearo can provide better reception than some basic windscreen-mounted antennas.

6. Examples of Popular Head Units

Brands frequently mentioned by Alfa Romeo owners include Junsun, Erisin, Belsee, Smarty Trend and Cartronix.

Junsun models are particularly common in Eastern Europe and are available with 7-inch and 10-inch displays, including models with 1280×720 resolution.

Erisin is also sold in Europe as a complete vehicle-specific kit, while Belsee offers systems such as the BA159 with higher-memory Android configurations.

One technical point often discussed by users is display resolution. Some 7-inch systems offer a true 1280×720 panel, while others use 1024×600 displays depending on the hardware platform and whether an optical CD/DVD mechanism is included.

Junsun is one of the brands commonly cited as offering 720p resolution on certain 7-inch units, resulting in a sharper image than typical 1024×600 displays.

7. Key Installation Steps

1. Identify your original system: standard radio or large ConnectNav GPS system.
2. Choose a head unit with the correct CANBUS interface and preferably at least 4 GB RAM.
3. Use the supplied Plug & Play harness between the original Quadlock connector, CANBUS module and new head unit.
4. For ConnectNav vehicles: use the appropriate Quadlock-to-ISO solution and specific 2-DIN fascia, and check the permanent/switched 12 V wiring if required.
5. Test everything before refitting the dashboard: audio, steering wheel controls, reversing camera, CarPlay, Android Auto, GPS and Bluetooth.

With the correct components and these precautions, your Alfa Romeo 159, Brera or Spider can gain a modern connected multimedia system while retaining a clean dashboard installation.
